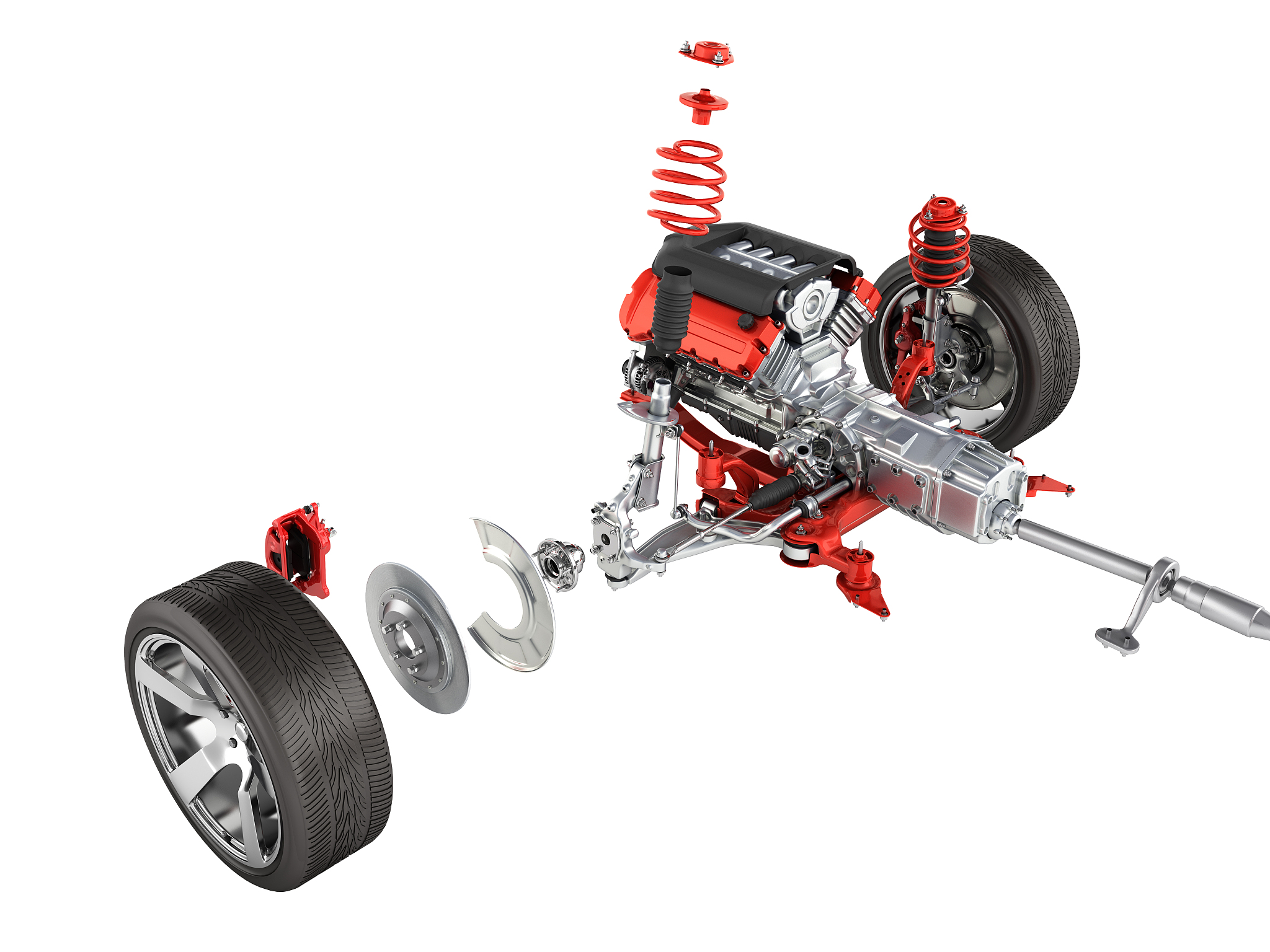

Braking System: Definition, Components & Working Principle

A braking system is a vital part of any vehicle that allows the driver to slow down or stop the vehicle. It consists of various components working together to convert kinetic energy into heat energy, thereby reducing the vehicle's speed.

Types of Braking Systems:

• Drum brakes: These brakes use a drum and brake shoes to create friction and slow the vehicle. Drum brakes are less expensive and require less maintenance than disc brakes, but they are less effective at high speeds and in wet conditions.
• Disc brakes: Disc brakes use a disc and brake pads to create friction. They are more efficient than drum brakes, providing better stopping power and heat dissipation.

Components of a Braking System:

• Brake pedal: The driver presses the brake pedal to initiate the braking process.
• Master cylinder: The master cylinder converts the pressure applied to the brake pedal into hydraulic pressure.
• Brake lines: Brake lines carry the hydraulic fluid from the master cylinder to the wheel cylinders or calipers.
• Wheel cylinders/calipers: These components convert the hydraulic pressure into mechanical force, pressing the brake shoes or pads against the brake drums or discs.
• Brake shoes/pads: Brake shoes or pads are the friction materials that press against the brake drums or discs, creating friction and slowing down the vehicle.
• Brake rotors/drums: Brake rotors or drums are the rotating components that are acted upon by the brake pads or shoes.

Working Principle:

When the driver presses the brake pedal, the master cylinder converts the pressure into hydraulic pressure, which is transmitted through the brake lines to the wheel cylinders or calipers. The wheel cylinders or calipers then press the brake shoes or pads against the brake drums or discs, creating friction and slowing down the vehicle.

Advanced Braking Systems:

• Anti-lock Braking System (ABS): ABS prevents the wheels from locking up during braking, improving vehicle control and stability.
• Electronic Brakeforce Distribution (EBD): EBD distributes braking force to individual wheels based on vehicle load and road conditions, optimizing stopping distance and stability.

Safety:

The braking system is essential for safe driving. Proper maintenance and timely replacement of worn-out components are crucial to ensure the braking system operates efficiently and effectively.
